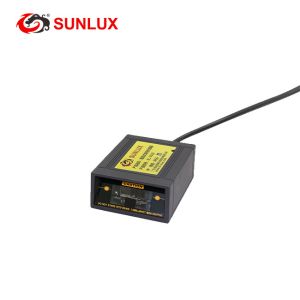

OEM 1D Barcode Reader Engine Embedded Fixed Bar Code Scanner Module
Product Features
◆ New 32-bit high performance full hardware decoding technology.
◆ Unique optical process reflective lens, sensitive and fast scanning.
◆ Strong identification of fuzzy barcode and high-density barcode.
◆ Equipped with simple assembly bracket.
◆ Intelligent induction code scanning.
◆ Often used in high precision industries: electronics, digital,
jewelry, etc.
◆ Support USB, PS2, RS232 and USB-VCP interfaces.
◆ The integrated structure design ensure more durable performance.
◆ High resilience board key and low maintenance cost.
◆ Ergonomic handle design makes work easier.
◆ Can withstand 1.5m free fall, perfect anti-earthquake and
anti-fall.
Product Specifications
PERFORMANCE PARAMETER |
Light Source | Visible Laser Diode 650nm |
Scan Pattern | Single line Scan |
Scan Speed: | 100 times/second |
Scan Precision | 3mil |
Scan Width | 30mm@scan window, 220mm@200mm |
Scan Depth of field | 0-350mm (0.33mm pcs0.9) |
Host System Interfaces | USB, RS232,Keyboard Wedge |
Decode Capability | EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar,
Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc. |
Tilt | 30 |
Elevation Angle | 65 |
Deflection Angle | 55 |
Support Inferface | RS232, PS2 and USB |
Print Contrast | 30% UPC/EAN 100% |
Mention Pattern | Buzzer, Indicator |
Scan Mode | Automatic, with auto sensor |
MECHANICAL PARAMETER |
Size | L x W x H: 68mm x 51.9mm x 26.3mm |
Weight | 287g |
Material | Zinc alloy |
Cable | Standard 1.45M straight |
ELECTRICAL PARAMETER |
Voltage | 5VDC |
Operating Current | 85mA peak current (120 mA ) |
Laser Class | Meet the Grade I National Criteria for Laser Safety |
EMC | CE & FCC DOC compliance |
ENVIRONMENTAL PARAMETER |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -20°C to 60°C |
Humidity | 5% to 85% relative humidity, non-condensing |
Light Levels | Daylight, 5000Lux |
DECODE CAPABILITY |
Industrial 2 of 5,Standard 25/Matrix 25/China post 25/Code
11/Codabar/MSI/plessey/UK/plessey/Code39
(Standard 39 & Full ASCII Code 39)/Code 32/Code 93/
Code128/UPCA,UPCE,EAN13,EAN8,UPC/
EAN add-on 2/5, ISBN,ISSN, GS1(RSS) RSS-14,LIMITED, EXPENDED,
Include GS1 STACK |
Certificate
Application
Delivery
RFQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire
bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.
2. Why so competitive?
With over 13 years experience,we're listed barcode scanner
manufacturer in China.We are the Top 3 barcode scanner brand in
China.So large quantity will reduce our raw material cost
directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every
product will test 5 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt
after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are
approved the new high-tech enterprise by the government.Owned many
technical and design patents in different professional fields.
