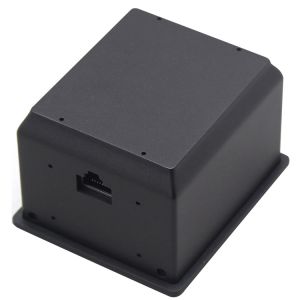

Easy Embedded QR 2D Code Scan Module Engine for Kiosk USB Interface
Product Features
◆ Support 1D/2D code from screen and paper
◆ Suitable for supermarkets, pharmacies, retail stores
◆ 100% own technology to meet customization requirements
◆ A megapixel image ensures better performance in decoding
hard-to-read barcodes
◆ Compatible with Linux, Android, Windows XP7/8/10/MAC OS
◆ Plug-and-play interface, ready for all POS systems
◆ USB, RS-232, USB-VCP cable interchangeable
◆ Easy to read various media, mobile phone, incomplete and fuzzy
barcodes
◆ Easy to be embedded in multiple kiosk applications
◆ 30 million pixels CMOS sensor for quick reading response
◆ Sensing scan in bright and dim environment
◆ Flexible to read barcodes from papers& electronic screens
Product Specifications
PERFORMANCE PARAMETER |
|---|
Light Source | White light,LED |
|---|
Scan Pattern | Sensing Scan |
|---|
Image Sensor | CMOS |
|---|
Decoding rate | 30fps |
|---|
Scan Precision | ≥5mil Precision |
|---|
Scan Depth of Field | EAN13: 20mm~130mm @13MIL PCS90% |
|---|
Decoding Capability | 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code
128(FNC1/FNC2/FNC3 ), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of
5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39(Code 39 FULL ASCII), Code 11, MSI-Plessey, Plessey
, etc 2D:PDF417, Data Matrix, QR Code, etc |
|---|
Scan Angle | Tilt ±40° Rotate 360° Deflection Angle ±300° |
|---|
Interface | USB-HID,USB-VCP and RS232 |
|---|
PHYSICAL PARAMETER |
|---|
Dimension | L × W × H:65.1x61.6x33(mm) |
|---|
Weight | 105g±1g |
|---|
Operating Current | 125mA(Typical value), 130mA(Max value) |
|---|
Voltage | 5 VDC±5% |
|---|
Static Current | 85mA |
|---|
EMC | CE & FCC DOC compliance |
|---|
ENVIRONMENTS |
|---|
Operate Temperature | - 20℃ — + 60℃ |
|---|
Storage Temperature | - 40℃ — + 70℃ |
|---|
Humidity | 5% to 95% relative humidity, non-condensing |
|---|
Light levels | Daylight, 0-100,000Lux |
|---|
Certificate
Application
Delivery
RFQ
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire
bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.
2. Why so competitive?
With over 13 years experience,we're listed barcode scanner
manufacturer in China.We are the Top 3 barcode scanner brand in
China.So large quantity will reduce our raw material cost
directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every
product will test 5 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt
after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are
approved the new high-tech enterprise by the government.Owned many
technical and design patents in different professional fields.
